Wire Rope and Cable

In-Stock

Category:

Ferrule mesh is a versatile and robust mesh system that finds extensive use in both architectural and industrial applications. This mesh is known for its flexibility, strength, and aesthetic appeal. Below is a detailed explanation covering its characteristics, construction, applications, and advantages.

Characteristics:

  1. Material:
    • Stainless Steel: The primary material used in ferrule mesh is stainless steel, typically grade 304 or 316. These grades are chosen for their high corrosion resistance, durability, and strength, making them suitable for both indoor and outdoor applications.
  2. Construction:

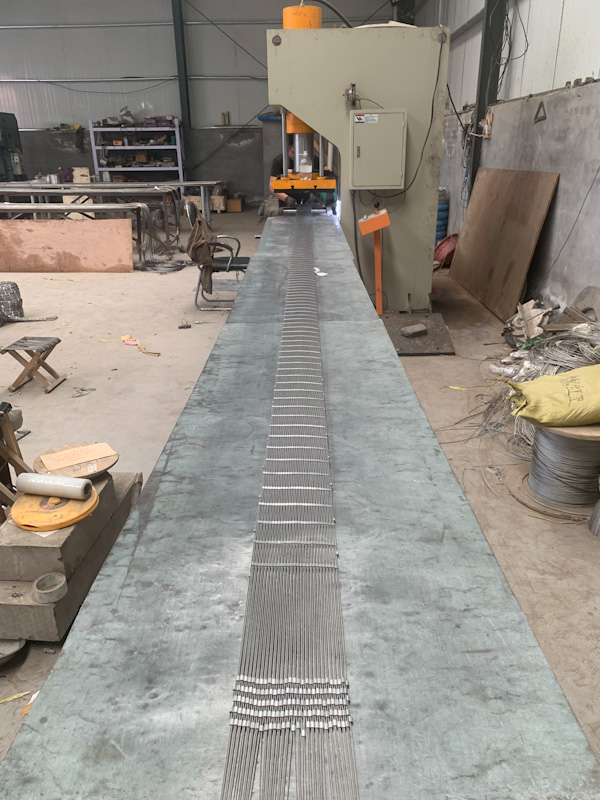

    • Cables and Ferrules: The mesh is constructed using high-tensile stainless steel cables that are threaded through metal ferrules. Ferrules are small, cylindrical sleeves that crimp the cables together at their intersections. This construction method creates a net-like structure that is both flexible and sturdy.
    • Mesh Patterns: Ferrule mesh can be manufactured in various patterns, such as square, diamond, or custom configurations, to suit different design requirements. The mesh opening size can also be varied depending on the application, ranging from small apertures for animal enclosures to larger ones for architectural facades.

Applications:

  1. Architectural:
    • Facades and Green Walls: Ferrule mesh is commonly used in green walls and building facades. The mesh provides a support structure for climbing plants, which can enhance the aesthetic appeal of buildings, improve air quality, and provide natural insulation.
    • Balustrades and Railings: In staircases, balconies, and bridges, ferrule mesh serves as an infill for railings and balustrades. It provides safety without obstructing views, creating a visually appealing yet secure barrier.
    • Safety Nets: Ferrule mesh is installed in areas where fall protection is necessary, such as around open stairwells, atriums, and balconies in commercial buildings. It ensures safety while maintaining an open, airy feel.
    • Animal Enclosures: Zoos and aviaries use ferrule mesh to create secure yet minimally obtrusive enclosures for animals. The mesh allows for clear visibility and natural light penetration, providing a better environment for both animals and visitors.
  2. Industrial:
    • Fall Protection: In industrial settings, ferrule mesh is used as a safety measure to prevent falls from heights. It can be installed around scaffolding, platforms, and open-sided floors.
    • Machine Guarding: Ferrule mesh provides protection around machinery to prevent accidental contact. Its flexibility and strength make it an ideal solution for safeguarding hazardous areas while maintaining visibility and ventilation.
    • Perimeter Fencing: Ferrule mesh is also used for perimeter fencing in industrial facilities, providing a secure barrier that is difficult to breach.

Advantages:

  1. Flexibility:
    • Ferrule mesh is highly flexible and can be shaped to fit a variety of forms and structures. This adaptability makes it suitable for complex architectural designs and irregular surfaces.
  2. Durability:
    • The use of stainless steel ensures that ferrule mesh is highly durable and resistant to environmental factors such as corrosion, UV radiation, and extreme temperatures. This longevity makes it a cost-effective solution over the long term.
  3. Aesthetic Appeal:
    • Ferrule mesh offers a modern, minimalistic look that complements contemporary architectural styles. Its unobtrusive design enhances the visual appeal of buildings and structures without compromising on functionality.
  4. Transparency:
    • One of the key benefits of ferrule mesh is its transparency. It provides security and safety without significantly obstructing views or light, making it ideal for applications where visibility is important, such as animal enclosures and scenic overlooks.
  5. Low Maintenance:
    • Ferrule mesh requires minimal maintenance compared to other materials. Its stainless steel construction means it does not rust or degrade easily, and it can be cleaned with simple methods like pressure washing.
  6. Safety:
    • In safety-critical applications, ferrule mesh provides reliable fall protection and containment. Its high tensile strength and secure construction ensure that it can withstand significant loads and impacts.

Examples of Use:

  1. Green Wall Facades:
    • Ferrule mesh supports the growth of climbing plants on a building’s facade, creating a vertical garden that enhances the building’s aesthetic and environmental footprint.
  2. Sports Stadium Safety Nets:
    • Installed around the periphery of sports stadiums, ferrule mesh ensures spectator safety while maintaining clear sightlines to the field.
  3. Zoo Aviaries:
    • In zoo aviaries, ferrule mesh creates secure enclosures for birds, allowing visitors to view the animals in a naturalistic setting without obstructions.
  4. Pedestrian Bridges:
    • Used as railing infill on pedestrian bridges, ferrule mesh provides a safe barrier while preserving panoramic views of the surroundings.
  5. Industrial Fall Protection:
    • In industrial facilities, ferrule mesh is installed around elevated work areas to prevent falls, ensuring worker safety in compliance with occupational health and safety regulations.



Material Specifications:

  1. Stainless Steel Grades:
    • Grade 304: Suitable for most indoor and some outdoor applications where the environment is not highly corrosive.
    • Grade 316: Used for outdoor applications, especially in marine or highly corrosive environments due to its superior corrosion resistance.

Cable Specifications:

  1. Cable Diameter:
    • Common diameters range from 1.0 mm to 4.0 mm. The choice of diameter depends on the required strength and the application, with thicker cables offering greater strength.
  2. Cable Construction:
    • 7×7: Seven groups of seven strands twisted together, providing a balance between flexibility and strength.
    • 7×19: Seven groups of nineteen strands, offering higher flexibility and strength, suitable for more demanding applications.

Mesh Specifications:

  1. Mesh Opening Size:
    • Typical mesh opening sizes vary widely depending on the application, ranging from 20 mm x 20 mm to 200 mm x 200 mm. Smaller openings are used for applications requiring higher security and containment, while larger openings are used for aesthetic or less critical applications.
  2. Mesh Pattern:

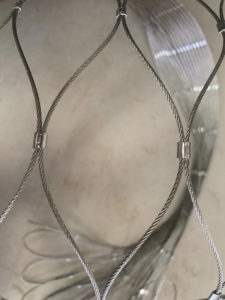

    • Diamond (Rhombic): The most common pattern, providing an elegant and modern look.
    • Square: Less common but used in specific design contexts.

Ferrule Specifications:

  1. Material:
    • Ferrules are typically made from stainless steel to match the cable material and ensure longevity and corrosion resistance.
  2. Type:
    • Pressed Ferrules: Commonly used for their secure and permanent connection.
    • Swaged Ferrules: Offer a strong bond and are used where high strength is needed.

Mechanical Properties:

  1. Tensile Strength:
    • Stainless steel cables used in ferrule mesh typically have a tensile strength ranging from 1570 MPa to 1770 MPa, providing excellent load-bearing capacity.
  2. Breaking Load:
    • The breaking load of the mesh depends on the cable diameter and construction, with higher diameters and more complex constructions offering higher breaking loads.

Coating and Finishing:

  1. Surface Finish:
    • Natural (Mill) Finish: Standard finish for stainless steel, providing a clean and modern appearance.
    • Electropolished: Enhances the corrosion resistance and provides a smoother surface.
    • Powder Coating: Available in various colors for additional aesthetic appeal and further protection against corrosion.

Customization Options:

  1. Tailored Mesh Sizes:
    • Mesh panels can be customized to specific dimensions required by the project.
  2. Edge Treatments:
    • Various edge treatments can be applied, such as reinforced edges for additional strength or specific mounting requirements.

Example Specifications for a Common Application:

  • Material: Stainless Steel 316
  • Cable Diameter: 2.0 mm
  • Cable Construction: 7×7
  • Mesh Opening Size: 50 mm x 50 mm
  • Ferrule Type: Pressed Stainless Steel
  • Tensile Strength: 1570 MPa
  • Surface Finish: Electropolished

Application-Specific Considerations:

  • Load Requirements: For safety applications like fall protection, the mesh must meet specific load-bearing standards and safety regulations.
  • Environmental Factors: For marine environments or areas with high pollution, using Grade 316 stainless steel with additional protective finishes is advisable.
  • Aesthetic Preferences: Depending on the architectural design, the mesh may be powder-coated in different colors or finished to match the overall aesthetic of the project.

Why Choose Us
