Product Overview

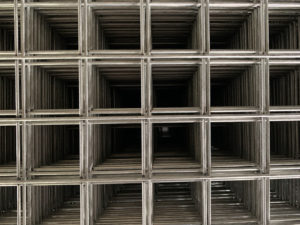

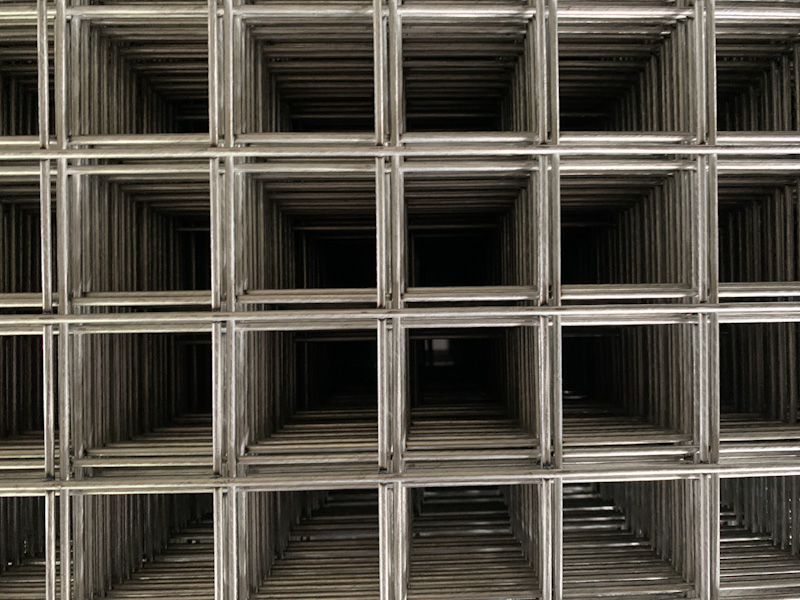

Welded Wire Reinforcement (WWR), also known as Welded Wire Fabric (WWF), is a prefabricated grid of high-strength steel wires welded together at their intersections. Our WWR is manufactured to meet the highest industry standards, providing consistent quality and reliable performance in various construction applications.

Product Types

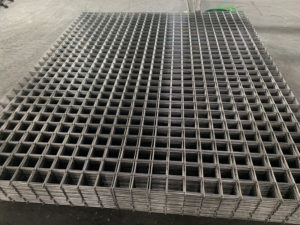

1. Flat Sheets
   • Sizes Available:
     • 7’5″ x 9’8″ feet (1.52×3.05 meters)
     • Any other customized sizes.
   • Applications: Ideal for large surface areas such as slabs and walls, providing ease of handling and installation.
2. Rolls
   • Sizes Available:
     • 5 feet (1.52 meters) wide, up to 150 feet (45.72 meters) long
     • 7.5 feet (2.29 meters) wide, up to 150 feet (45.72 meters) long
     • Any other customized sizes.
   • Applications: Suitable for flexible applications like driveways and sidewalks, allowing for easy transportation and unrolling on-site.

Specifications

• Wire Gauges Available:
  • 6 gauge (0.192 inches or 4.88 mm)
  • 8 gauge (0.162 inches or 4.11 mm)
  • 10 gauge (0.135 inches or 3.43 mm)
  • 12 gauge (0.105 inches or 2.67 mm)
• Mesh Sizes:
  • 4×4 inches (100×100 mm)
  • 6×6 inches (150×150 mm)
• Materials:
  • High-strength carbon steel
  • Optional zinc coating (galvanized) for corrosion resistance
  • Stainless steel for enhanced durability

Mechanical Properties

• Tensile Strength: 70,000 to 80,000 psi (480 to 550 MPa)
• Yield Strength: 50,000 to 60,000 psi (345 to 414 MPa)
• Weld Point Strength: Approximately 35,000 psi (240 MPa)

Applications

• Slabs on Grade: Ideal for residential, commercial, and industrial floors to control shrinkage cracking and enhance load-bearing capacity.
• Walls: Provides structural reinforcement for both cast-in-place and precast concrete walls.
• Pavements: Used in concrete pavements, driveways, and sidewalks to improve strength and durability.
• Precast Products: Enhances the load-bearing capacity and durability of precast concrete products such as pipes, tanks, and beams.

Advantages

• Ease of Use: Simplifies installation, reducing labor time and costs compared to traditional rebar.

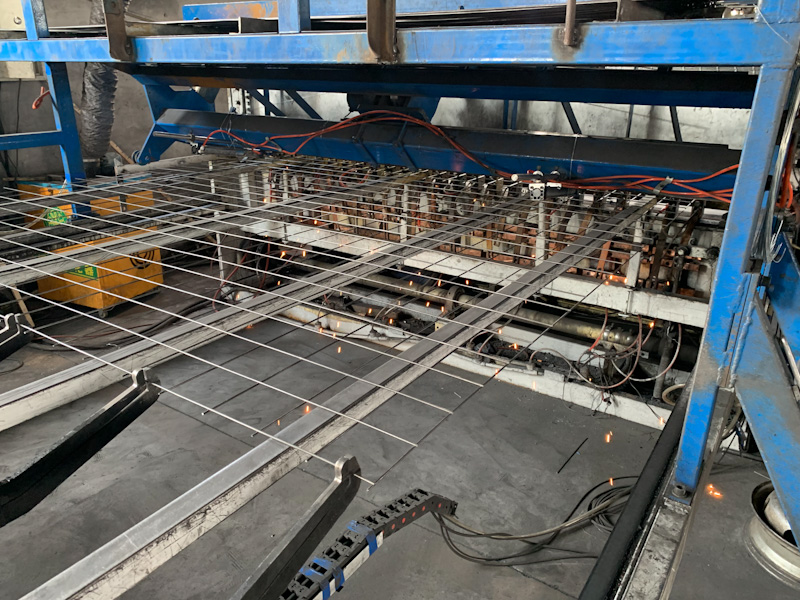

• Consistency: Factory production ensures uniform wire spacing and consistent quality.
• Strength: Offers excellent tensile strength and crack resistance, improving structural integrity.
• Reduced Labor: Can be installed more quickly than traditional rebar, reducing overall project costs.
• Efficient Material Use: Minimizes material waste due to precise manufacturing processes.

Installation Tips

• Placement: Typically placed in the middle or slightly above the middle of the concrete slab to optimize reinforcement.
• Overlaps: Proper overlapping of sections (8 to 12 times the wire diameter) is essential for continuous reinforcement.
• Support: Use chairs or other support devices to maintain the correct position during concrete pouring.

Compliance and Standards

• ASTM Standards: Manufactured according to ASTM A1064 for carbon steel wire, ensuring quality and consistency.
• Building Codes: Meets the requirements of major building codes, including ACI guidelines, for specific structural applications.

Choose Duke’s Wire Mesh & Metal for your next construction project and experience the benefits of high-quality Welded Wire Reinforcement. Our products are designed to deliver exceptional performance, durability, and ease of use. Contact us today to learn more about our offerings and how we can help you achieve your construction goals.

Duke’s Wire Mesh & Metal – Building Strength, One Wire at a Time.
